Profile

Model : JIS F 7312 5K

Model : JIS F 7311 5K

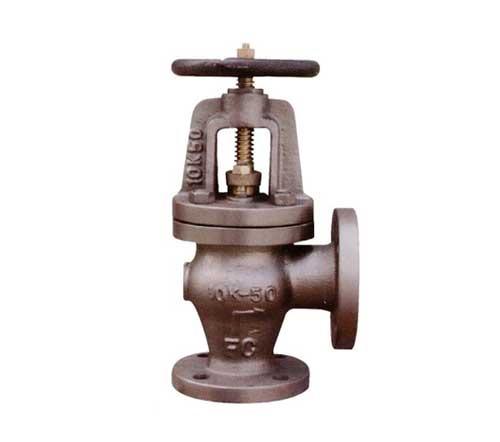

Model : JIS S 3060 5K (angle type)

Model : JIS F 7121 5K

Model : JIS F 7206

• Threaclecl encls to BSFT (BS2 I ) or Nf'T (ANSI BI.20, I )
• Face-to-Face or End-to-Encl : ARITA Standarcl
• Watt thickness' ARJTA Standarcl
• Working Pressure: 2:0 kgf/cmm (300 psi)
• Application'  Water & Gas Oil  &  Steam  (availa[›Ie  upon  special rec)uest)

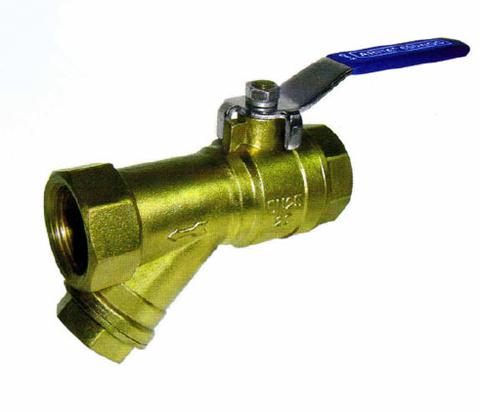

• The valve is designed for vertical, horizontal or angled installation for use in residential and commercial plumbing, sanitary, autoclaves, pump and compressed air systems.
•  Application : Water
•  Working Temperature : 100 °C
•  Thread : BSPT (BS 21) or NPT (ANSI B 1.20.1)

• Body : Brass
• Cap : Brass
• Stem : erass
• Ball : Brass (hard chrome  plated)
• Seat :PTFE
• Gland Packng :«0›• ring FPM
• Hande : Carbon  steel  (vinyl grip)

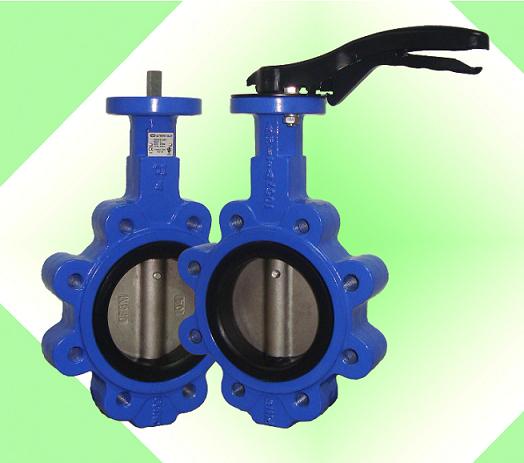

The ARITA Series body design neck with octagon shape offers esthetic appearance, strength and compatible flange connection to international standards. Its top flange is designed to ISO5211 for the direct mounting of gear operator or actuators which eliminate the cost of mounting bracket. The lug style design allows the valve to be installed between two flanges by using a separate set of bolts on each side of flange. The one piece design body provides outstanding protection against particle entrapment and bacterial growth. ARITA offers various materials for the valves seat and disc to meet the various requirements of customers. The fine finishing of seat surfaces and the polished edge of disc give good sealing and reduction in operating torque. The upper and lower shafts are well supported and properly sealed to prevent leakage. This pin less design has eliminated the potential of leak through pin hole.

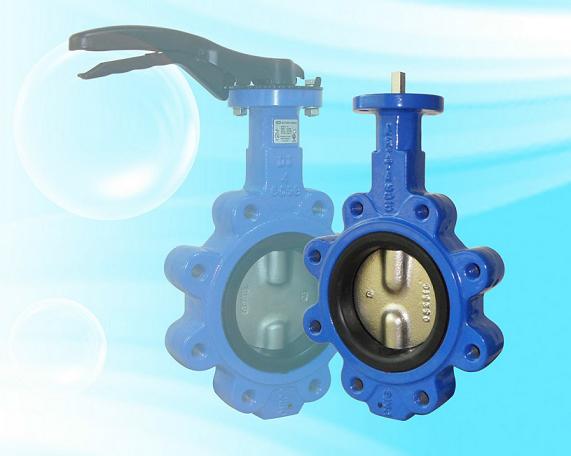

The new body design offers rectilinear aesthetic appearance, strength and compatible flange connection to international standards. Its top flange is designed to ISO 5211 for the direct mounting of gear operator or actuators which eliminate the cost of mounting bracket. The Lug style design of flange. The body is epoxy coated for better resistant against abrasion and corrosion. Arita offers various materials for the valves seat and disc to meet the various requirements of customers.

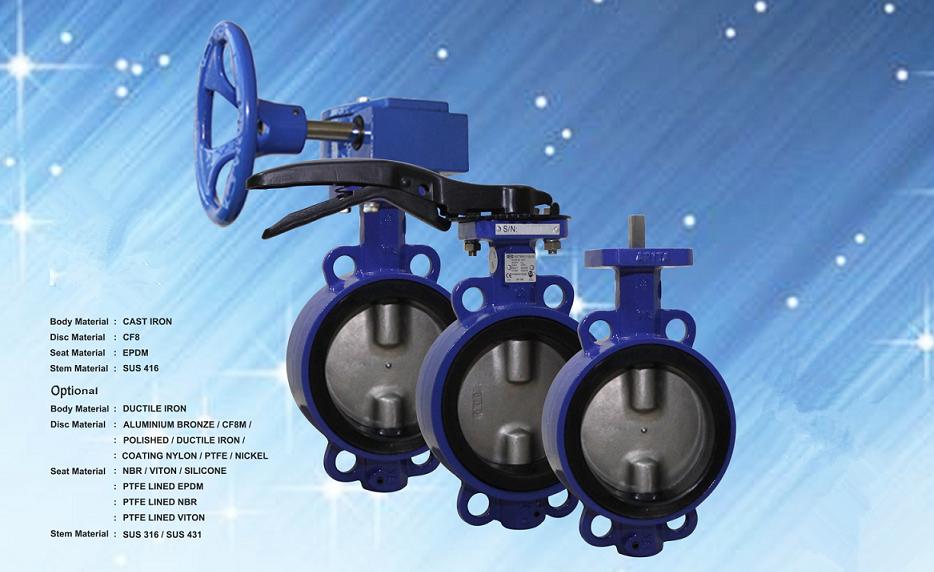

This T Series design can save operating space, for those need to add insulation orinsulation isolated to protect the neck occasion need to special consideration. The newbody neck with octagon shape design offers esthetic appearance, strength andcompatible flange connection to international standards. Its top flange square shape isdesigned to ISO5211 for the direct mounting of gear operator or actuators whicheliminate the cost of mounting bracket. The one piece design body provides outstandingprotection against particle entrapment and bacterial growth.

• 120°C N on-shock water: 1.3 7 MPa (14 kgf/cm2)
• 120°C Water, oil, gas: 0.98 MPa (10 kgf/cm 2)
• Saturated steam: 0.69 MPa (7 kgf/cm2)
• Hydrostatic shell test: 2.06 MPa (21 kgf/cm2)
• Hydrostatic seat test: 1.51 MPa (15.4 kgf/cm2)
